Matched Engine：It is suitable to engine490, engine 495,engine 4100, engine4102, engine4105 and other gasoline engines or diesel engines.
Input power：80K
Input torque：300N.M
Weight：132Kg
Fuel tank：main tank3.5L 、vice tank1.2L
Speed ratio：

gear	1	2	3	4	5	R
High-grade	6.802	3.878	2.267	1.424	1	6.154
Low grade	10.271	5.856	3.423	2.147	1.51	9.293

It has five forward gears and one reverse gear. The 1-speed gear and reverse gear adopt sliding gear sleeve. The 2-speed gear and 3-speed gear adopt lockpin type synchronizer. The 4-speed gear and 5-speed gear adopt inertia lock ring synchronizer. It is flexible to shift gear and easy to operate.
The vice tank adopts sliding gear sleeve type.
It can be installed with various hand brakes, clutch cover and also can match power takeoff;
It can remote control or direct manipulation, vice box can be used manually or pneumatic control;
It is suitable to various speed ratios of odometer.

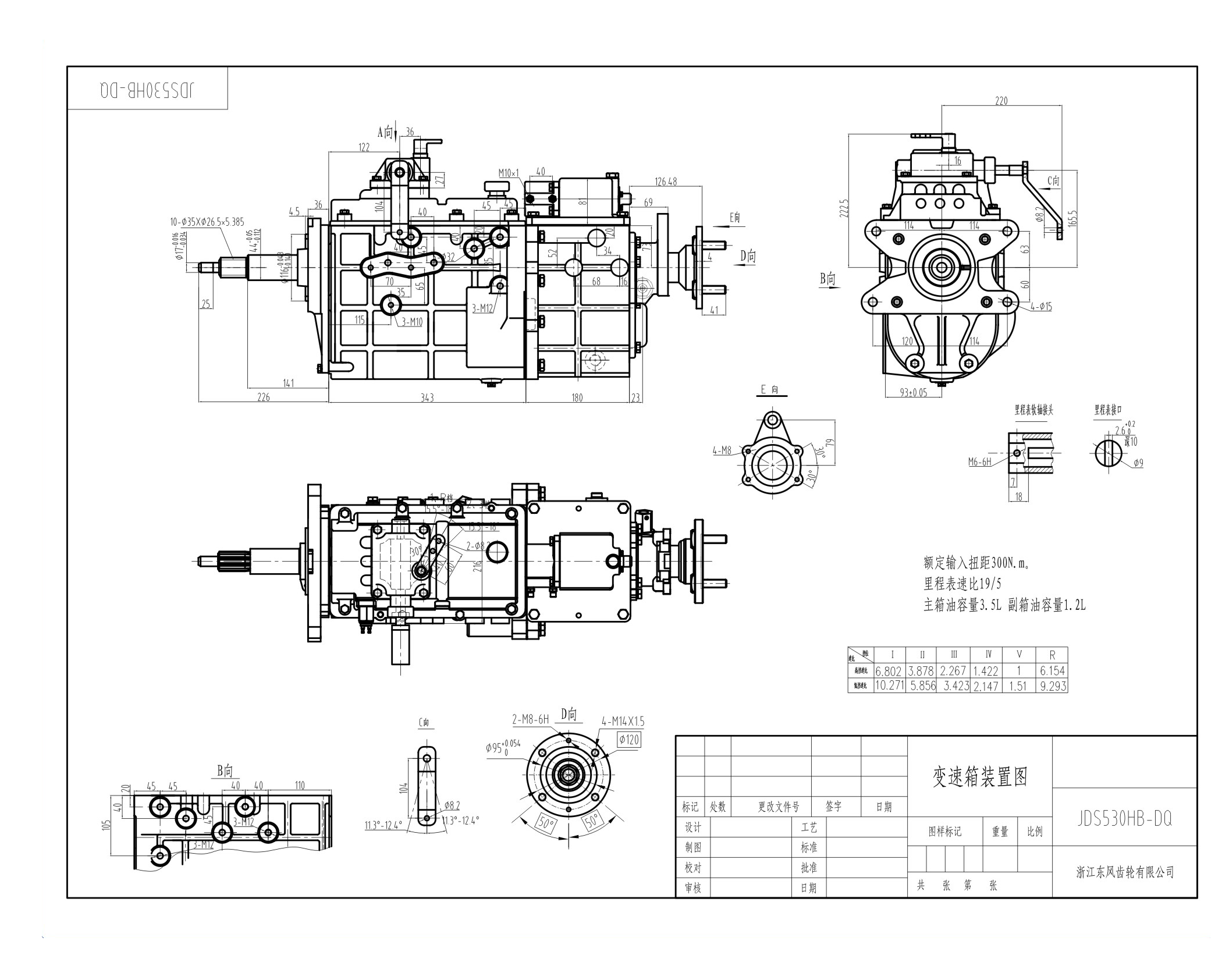

图纸下载

Item	Material Code		Name							Specification
1	2800002003		The first axis							JD530-030C2
2	2001002022		One axis							LG530C2-1701126A
3	3022002004		Cylindrical roller bearing							NUP210EN
4	2801002005		The second axis assembly							JD530HB-110
5	2012002003		The second axis							LG305QHZ-1703006A
6	2016002003		Main axis 4-speed gearbox assembly							LG530-1701310
7	2017002001		Main axis 3-speed gearbox							LG530-1701314
8	2018003001		Main axis 2-speed gearbox?							LG530-1701325
9	2019002001		Main axis 1-speed gearbox assembly							LG530-1701326
10	2020002001		Main axis reverse gear assembly							LG530-1701333
11	3040002003		4/5-speed gearbox synchronizer assembly							1700.05-140
12	3040001001		2/3-speed gearbox synchronizer							1700.01-120
13	3041003001		First reverse gear sliding gear sleeve							1700.01-113
14	2802002003		Intermediate axis assembly							JD530HB-040
15	2002002005		Intermediate axis							LG530QHZ-1701211
16	2006002001		Intermediate axis 4-speed gearbox							LG530-1701213
17	2010002001		Intermediate axis 2/3-speed gearbox							LG530-1701214
18	2009002001		Intermediate axis constant mesh gear							LG530-1701212
19	2803002001		Upper cover of main tank assembly							JD530-210
20	3016001002		Upper cover of main tank shell							1700.05-215(铝)
21	3005002002		Shifting fork of first reverse gear							1700.01-252
22	3005011001		Shifting block of first reverse gear							1700.01-253
23	3005004001		Shifting fork of 2/3-speed gearbox							1700.05-262
24	3005006001		Shifting fork of 4/5-speed gearbox							1700.05-272A
25	3004002001		Selector fork of first reverse gear							1700.01-251
26	3004004001		Selector fork of 2/3-speed gearbox							1700.05-261
27	3004006001		Selector fork of 4/5-speed gearbox							1700.01-271
28	2806002024		Long-distance operating upper cover assembly							JD530ZXDG-036（铝）
29	2805002013		Vice tank assembly							JD530HB-800F
30	2036002006		Output axis							LG538HZC-1703011
31	2032002005		Low-speed gearbox of vice tank?							LG538HZC-1703010
32	2034002003		Intermediate axis gear of vice tank							LG305HG1-1703004
33	2028002002		Sliding gear sleeve of high-and low-speed gearbox							JD530HB-824
34	3012005004		Intermediate axis							JD530HB-831
35	3018002011		Vice tank shell							JD530HB-801C
36	3019002007		Back bearing cover of vice tank							JD530HB-851
37	3022002003		Cylindrical roller bearing							NJ307E
38	3022002017		Cylindrical roller bearing							NUP307EN
39	3022002006		Cylindrical roller bearing							NUP2209EN
40	3022001010		Deep groove ball bearing							6208E
41	2804002001		Air-operated upper cover of vice tank assembly							JD530HB-840Q
42	3016006002		Upper cover shell of vice tank							JD530HB-841Q
43	3005008004		High-and low-speed gearbox shifting fork of vice tank							JD530HB-842Q
44	3004008005		后Selector rod of back vice tank							JD530HB-843Q
45	2031002006		High-speed gearbox assembly of vice tank							LG538HZC-1703007
46	2011002001		Reverse gear idler							LG530-1701410
47	3017003003		Gearbox housing							JD530HB-025A
48	3026001003		Air-operated multiple spline power takeoff							530-600Q
49	3027001001		Reverse gear axis							1700.01-092A
50	3022002001		Cylindrical roller bearing							NJ207E
51	3022002017		Cylindrical roller bearing							NUP307EN
52	3022002008		Cylindrical roller bearing							NUP309ENVC3
53	2808002003		Flange assembly							JDS530HB-028A-030
54	3021002005		Flange							JDS530HB-028A
